Connection

First pick-up – Long distance transport position

1. Remove the transport strap.

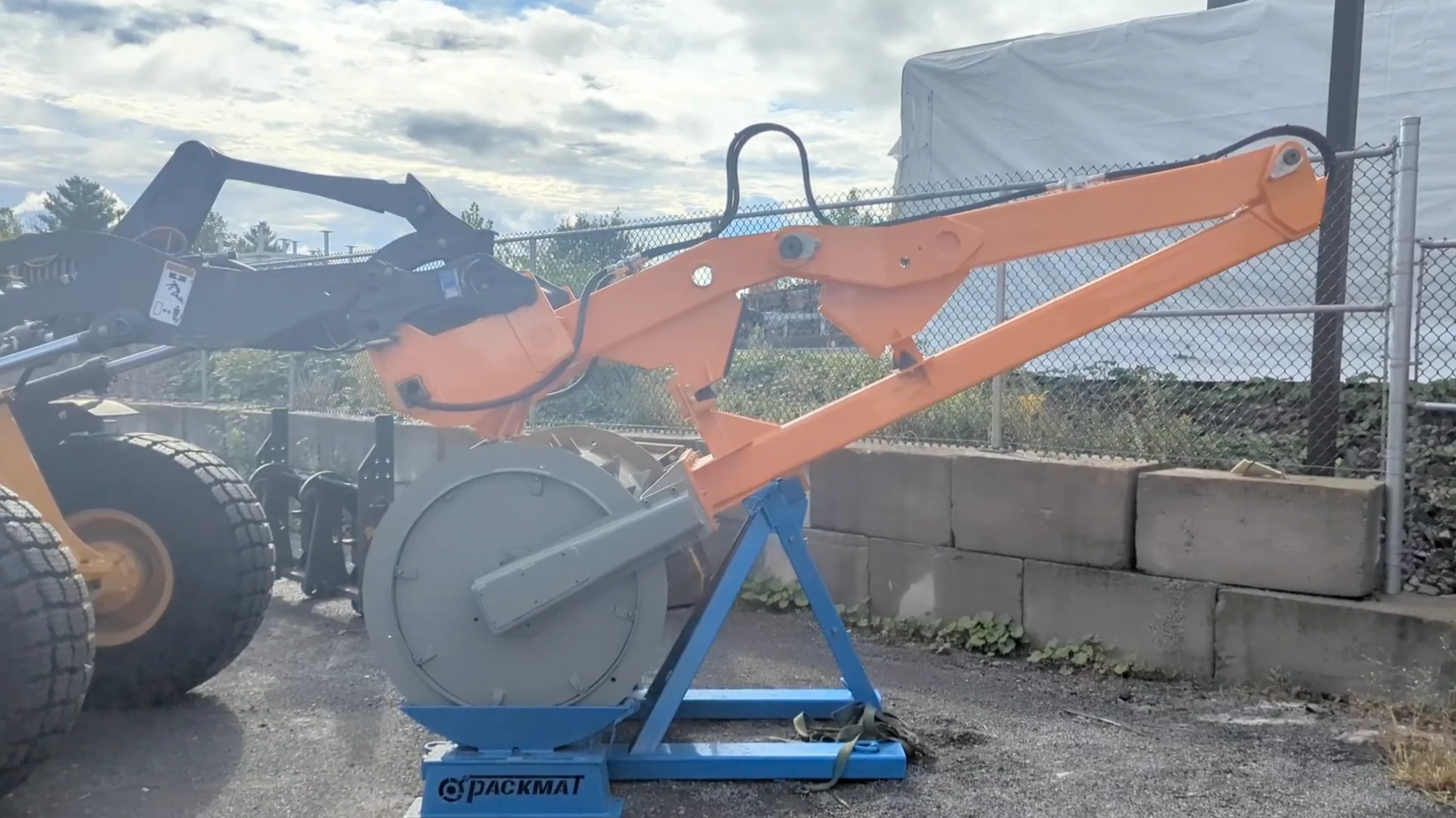

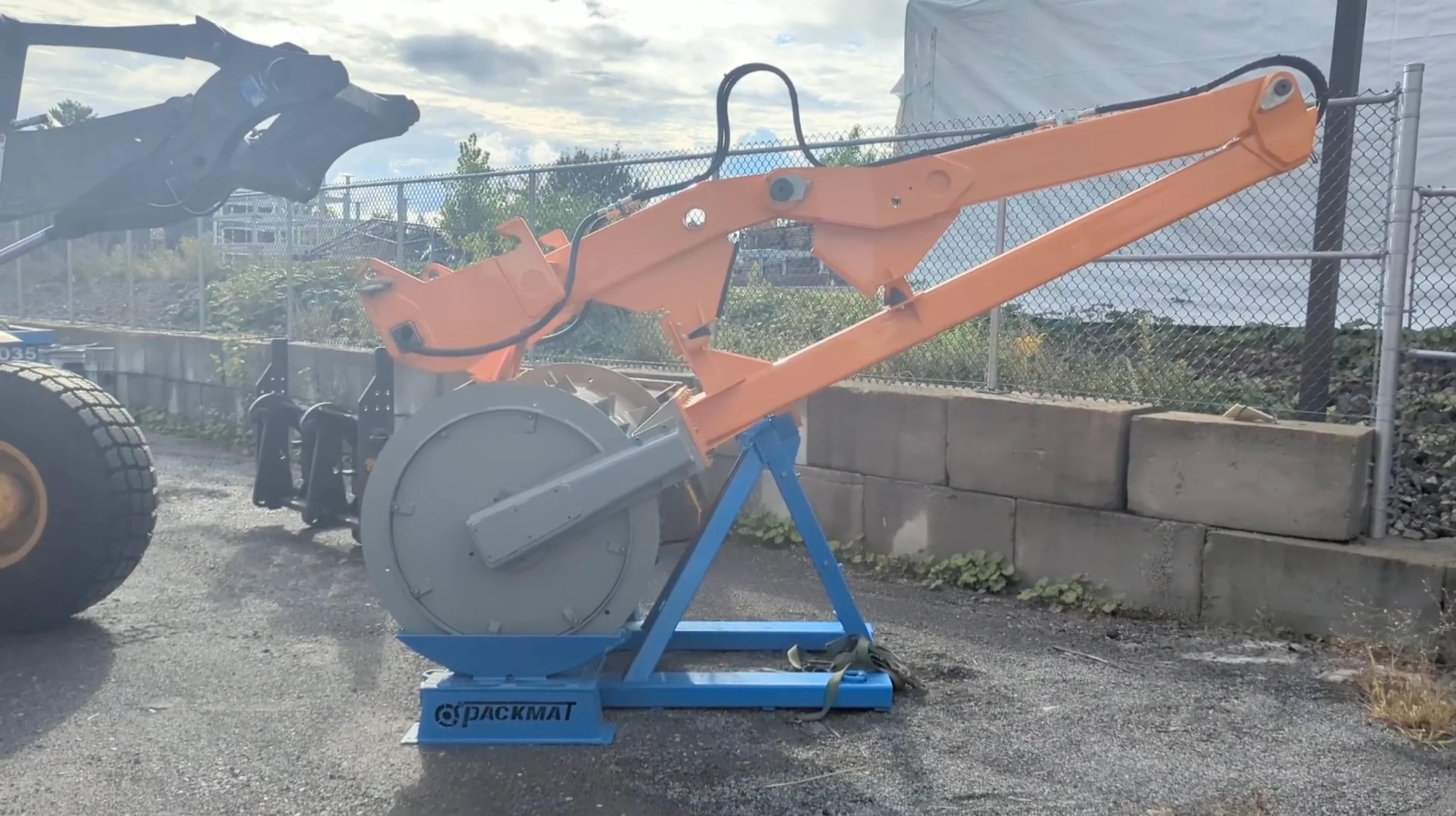

2. Align the loader with the PK707 pins. Tilt the rocker fully forward.

3. Move forward to insert the quick attach under the upper hooks. Raise the boom gradually while approaching.

4. Once engaged, slowly tilt the rocker down until the machine starts to lift, then stop.

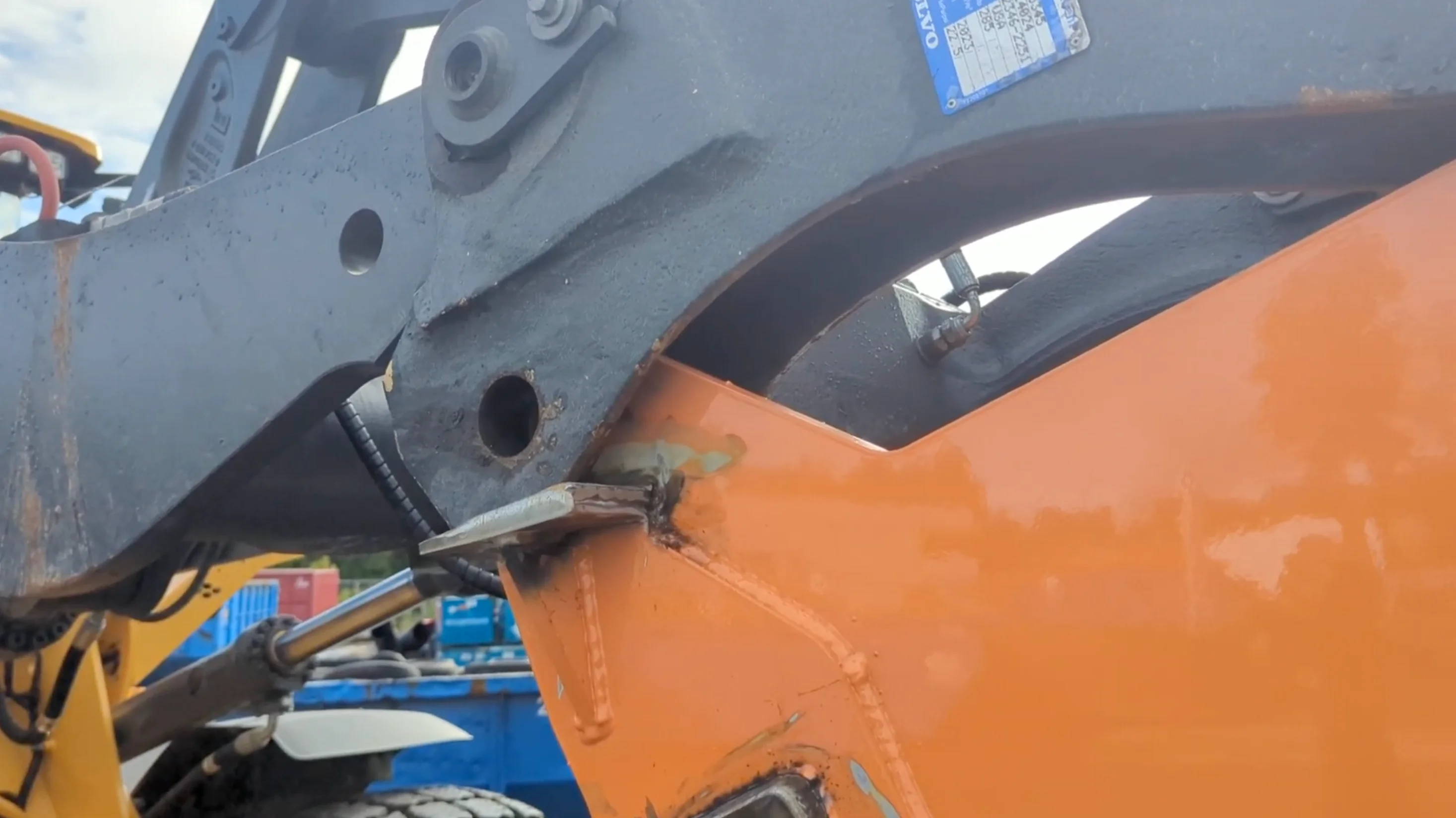

5. Activate and lock the quick attach pins.

6. Tilt the rocker backward. Reverse slightly with the loader.

7. Warning: reverse to avoid the two parts getting stuck together.

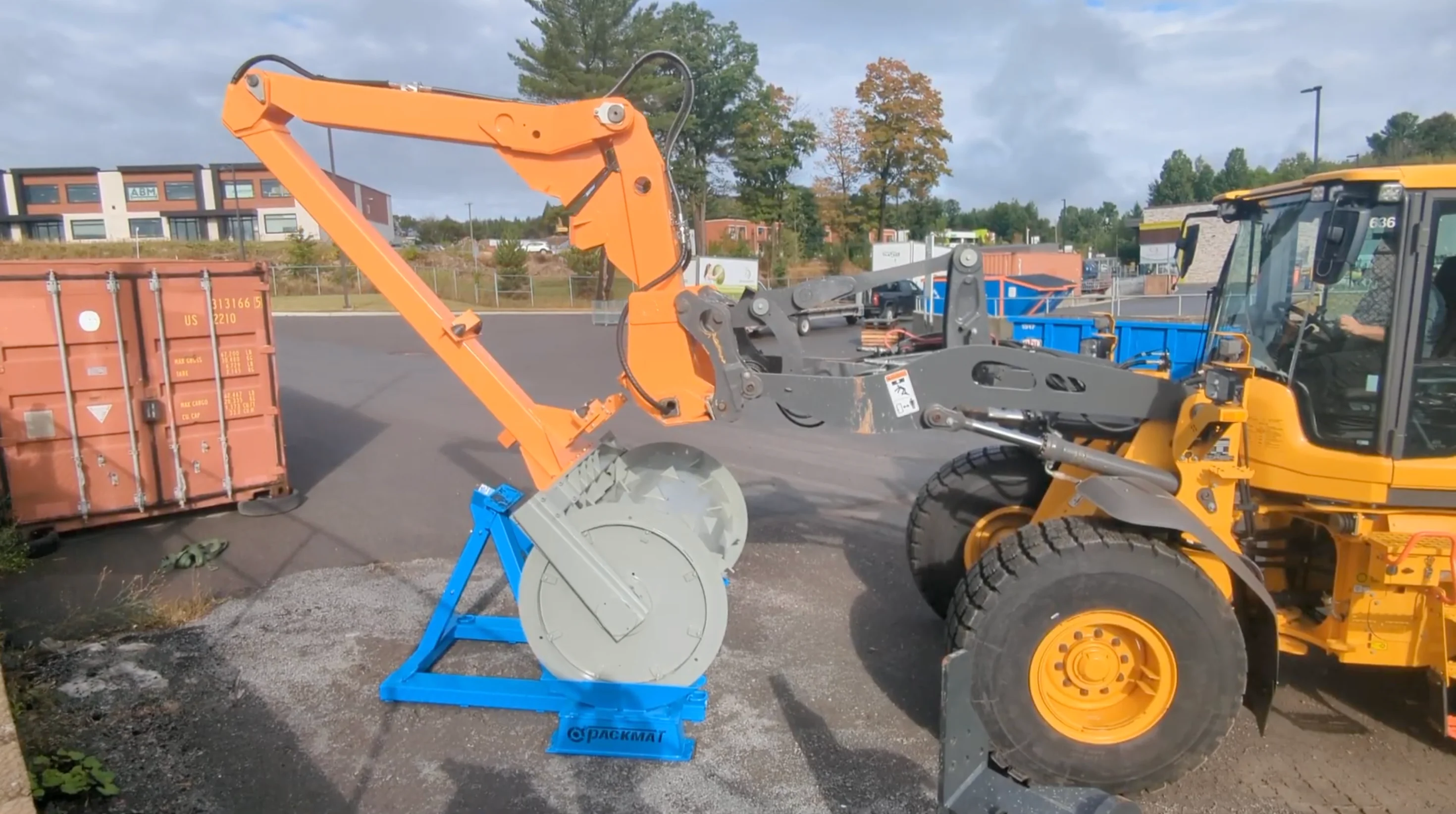

8. Raise the roller arm as vertically as possible throughout handling.

9. Lower the boom near the ground. Connect the hydraulic quick connects. Raise the boom.

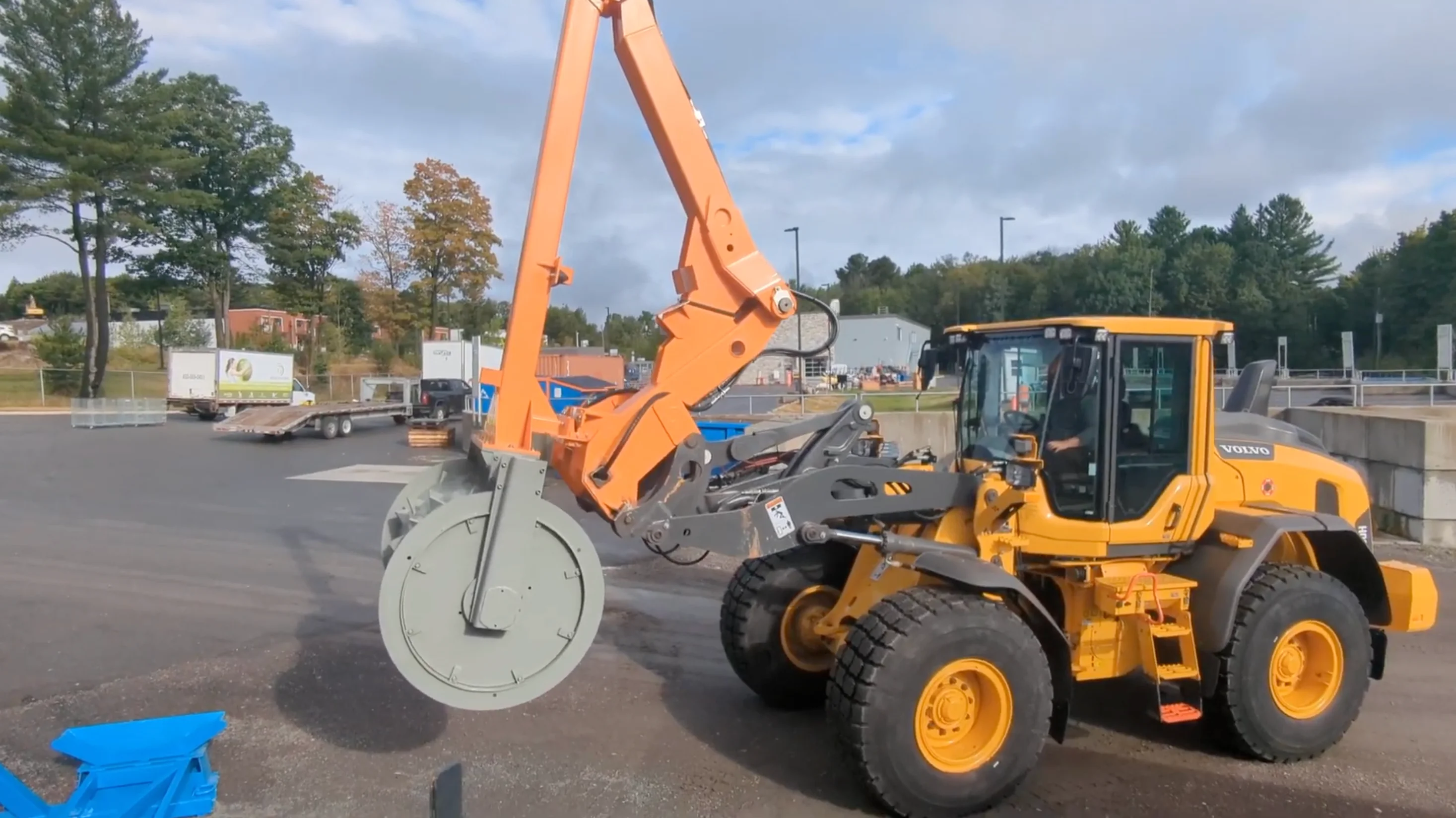

10. Reverse with the loader. Tilt the rocker fully backward so all arms are in contact and locked.
